What Is Boiler Modulation?

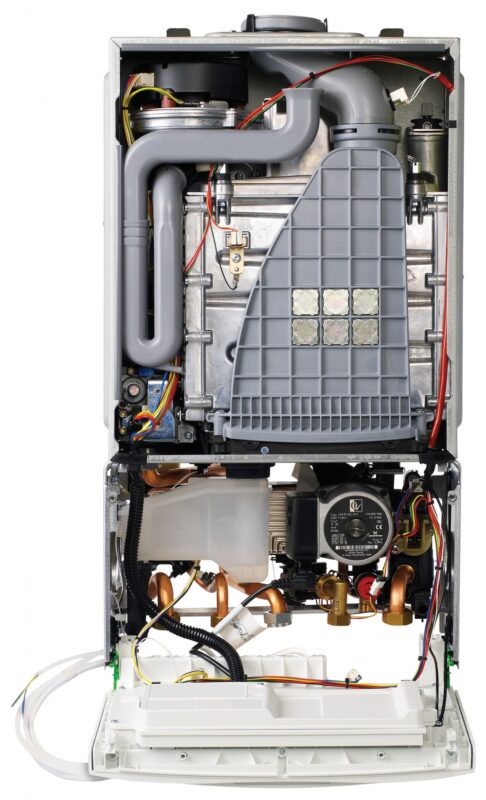

inside a boiler - boiler modulation

Boiler modulation is a must-know for anyone with a boiler, as it determines if your device is working efficiently and how you can get the most out of it.

If you stay in a typical UK property, you’ll be familiar with having a boiler – but do you know what it does and how it works?

This article will help you understand what boiler modulation is, and more about the ins and outs of your boiler system and how it can really cut your energy bills, so, find out more below.

Get 12 years of warranty for the price of 10 on Worcester & Viessmann modulating boilers – lock in your fixed price here.

Get an online fixed price in 20 seconds:

Q What kind of fuel does your boiler use?

What Does A Boiler With Modulation Capabilities Do?

This question might seem redundant to some, but many people with boilers aren’t knowledgeable about how they operate, and if you were born before 1970, there’s a chance you still remember when fire and coal were the only options to warm your home.

Step in the modern-day boiler; an enclosed metal device that produces a consistent flow of hot water, supplying heat to the pipes throughout your house, and giving you central heating.

The hot water is pumped via an electric central heating pump to get the heat into the house and there are different types of boilers available, but most UK heating systems are fuelled by natural gas from the National Grid.

How Does A Modulating Boiler Work?

Firstly, let’s talk about the pipes:

  1. The boiler can control the cold water.
  2. They run from your boiler to your external gas supply.
  3. The hot water can flow back to warm your home.

With this in mind, let’s take a closer look at what’s going on inside the boiler:

  • Fuel jets: Once you open the valve to get heat, valves open within the boiler to bring in the gas (Pipe 2 above). The gas ignites, and the jets warm up the heat exchanger.
  • Heat exchangers: A metal component that passes heat to cold the water pipe (Pipe 1 above). It then transfers the heat to this water, allowing it to heat up.
  • Electric pump: Found either in the boiler or somewhere close by, it pumps the hot water around the pipes so it can flow through your house at the required temperature.

Once the water has gone through the radiator, it returns to the boiler for reheating.

The process might sound simple, but lots of components are involved and different actions are taking place within the boiler to get it to work as it should.

You don’t have to become a boiler expert just because you’ve got one in your home, but it’s important to know the basics. This means you’ll know what to look out for if things aren’t working.

To illustrate common boiler safety knowledge, the igniting gas should always appear as a blue flame. If the flame is orange or dull yellow, it could be emitting a dangerous gas (carbon monoxide).

How Does Boiler Modulation Work?

In simple terms, boiler modulation reduces boiler output if you need less energy to produce the required heat.

A small boiler is around 12kW-15kW and can power six to eight radiators in the home.

However, if, for instance, you know that you only need 5kW of heat for a period, the boiler modulation kicks in and reduces the boiler’s flame by 33% (5kW of 15kW). This is in place of the boiler using its maximum output of 15kW every few minutes.

This is known as the boiler modulation ratio; the minimum output of the boiler is about the maximum output. The modulation allows your boiler to run at different rates.

A boiler with a maximum output of 30kW and a minimum output of 7.5kW, for example, has a modulation ratio less than 4:1. The modulation ratio of a boiler with a maximum output of 30kW and a minimum output of 3kW is 10:1.
