How to Repressurise Worcester Combi Boiler

repressurise Worcester combi

How to Repressurise Worcester Combi Boiler

Worcester bosch combi boilers have been very popular in the UK, and it has been providing an excellent service to the customers for several decades. worcester bosch logo

To work efficiently the Worcester combi boiler needs to operate on a standard pressure, between 1/ 2 bar, 1.5 bar is also a good pressure level.

So, the pressure of the combi boiler needs to be topped up with cold water through the mains at some point in their lifetime.

However, while operating the combi boiler, if you notice that the pressure gauge or indicator has dropped down to the red zone, then you must repressurise it immediately.

It might happen when your system is not heated properly, has a leak from the expansion vessel or commonly happens after removing a radiator.

Worcester Bosch has been awarded the Which? Awards for the last 10 years on the row, giving trust and fantastic reviews online. worcester bosch Which?


Pressure your boiler with internal filling key

The internal filling key is designed to lock and unlock the unit. It is basically made of plastic.

Here are the steps to repressurise the Worcester combi boiler using an internal filling key.


⭐ Step 1:

Locate the internal filling key properly and place it accordingly.

Check under the Worcester combi boiler, and you will find out a white plastic tray. Then, you will just need to locate the key by removing the tray.

⭐ Step 2:

Check out the white arrows which are pointing upwards close to the base of the key.

There, you will need to locate the arrows. After that, line up the in the manifold.

⭐ Step 3:

Locate the manifold of your boiler.

It is basically made of black plastic, and it is linked to the cold mains inside the boiler through to the central heating return.

⭐ Step 4:

Locate the padlock symbol of your boiler. On the manifold plastic, the padlock symbol is located next to one another.

So, you can identify what and which will you need to perform the internal filling key properly and to position it correctly to carry out the procedure onwards.

⭐ Step 5:

In this step, you will need to push the key into the manifold.

Find the white arrows of the key and line them up with an open padlock symbol which is positioned on the plastic of the manifold.

Then, push the key inside of the tubing and move it to the closed padlock symbol position. It is essential, and you must make sure that the key is pushed snugly with the manifold.

⭐ Step 6:

Make sure not to allow water to enter into the system.

When the internal key is placed in the closed position, you will need to start turning the white plastic nut with anticlockwise moves.

Then, you will begin to hear the sound of filling the hot water into the heating system.


⭐ Step 7:

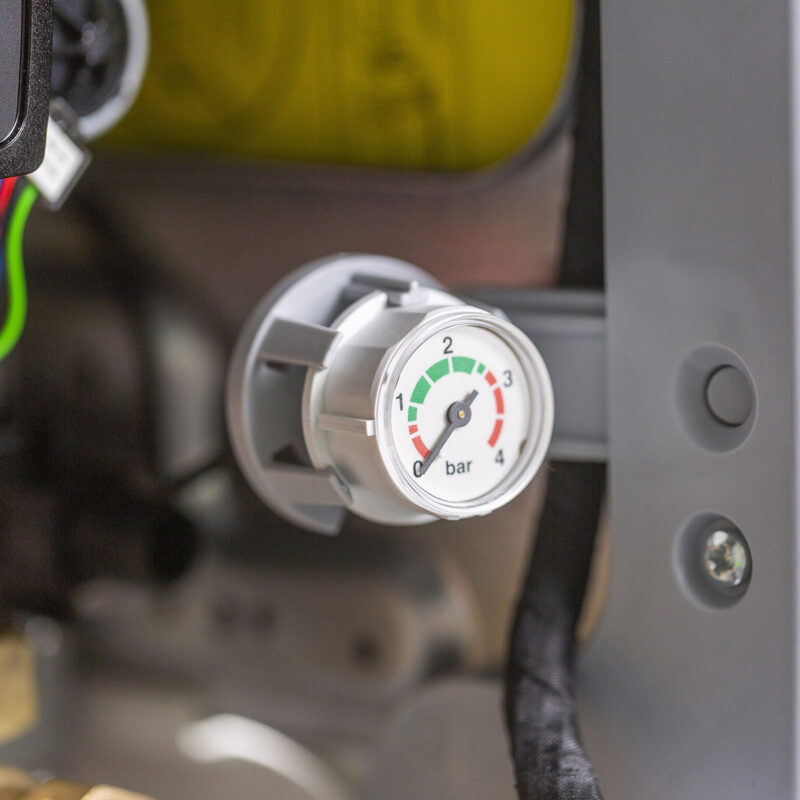

Now, start monitoring the boiler pressure.

When the water is entering the system, you should keep on eye to the pressure gauge looking at the front side of the boiler.

When it reaches to the standard pressure indicator of 1.5, then you will need to tighten the white plastic nut until the water stops entering into the system.

⭐ Step 8:

Now, remove the internal filling key from the system. For this, you will need to turn the key back to the locked padlock symbol position.

While removing the key from the manifold, you would notice a few drops of escaping water. That’s good and normal.

If you find the water is dropping continuously, then you can check the previous nut to see whether it was tightened properly or not.


What will you do if the needle raises too high on the red section?

Firstly, don’t get anxious about it.

Just conduct an easier fix and bleed a little bit of air from the radiators.

You may require to repeat the process if the pressure drops again.


What would you do if the key gets stuck?

If this did occur, don’t move the key; it could eventually lead the boiler to be over pressurised.

Then, it may cause damage to the unit. In that case, you may need to go to a local engineer to replace the filling link and tackle the situation.


Final Words

The full procedure of repressurising a Worcester combi boiler must be done with maximum alert on performing all the steps mentioned above properly.

If not you might be a reason for doing any damage to your boiler and this could be costly unless you have a boiler cover plan.
